FLD Series Flywheel Coupling | Guardian Couplings

The FLD coupling enables the hydraulic pump to be driven from the pulley side of the engine. The coupling features a retractable sleeve for easy belt replacement. This allows you to service the equipment without removing the pump. The FLD coupling is fully customizable to suit a variety of engine manufacturers and designs.

Product Features

  • CUSTOMIZED SOLUTION - Every application is suited to fit specifically with the end users pulley. Each flange is engineered to mate with the pulley and incorporates the Guardian GuardexTM M/I style series of couplings.
  • MISALIGNMENT - Double crowned tooth design provides free axial movement, low friction and minimum stress during misalignment. Designs are available with up to 3/8” axial travel.
  • ENVIRONMENT - Nylon and steel components allow high ambient temperature operation without lubrication or maintenance. Continuous operating ambients in the ranges between (-) 13°F and (+) 180°F. Heat stabilized polyamide available for temperatures up to (+) 250°F.
Click on image below to download pdf. To order hard copies of literature click here.

Related Literature

  • p-7717-gc
  • Guardian & Stromag Flywheel Drive Couplings

Product News

Contact Info

Guardian Couplings
300 Indiana Highway 212
Michigan City, IN 46360 - USA
Phone: 219-874-5248
Fax: 219-879-6643
Email: sales@guardiancouplings.com
www.guardiancouplings.com

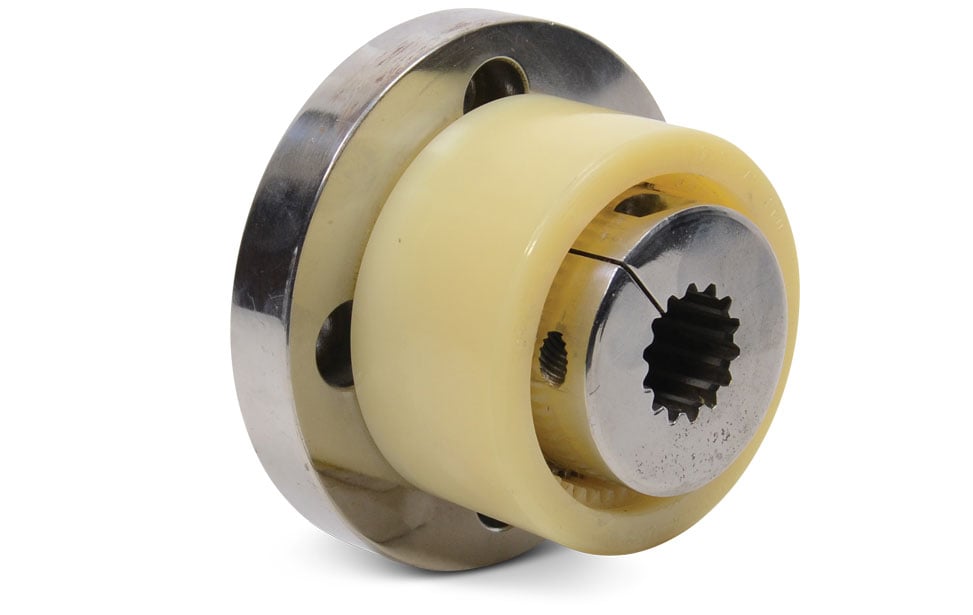

FLD Series Coupling
